02-Flink-WordCount编程

**一、建立WordCount工程**

```bash
# 创建工程文件夹~/bigdata/flink/wordcount
nbu@ecs:~$ mkdir -p bigdata/flink/wordcount
nbu@ecs:~$ cd bigdata/flink/wordcount
# 创建项目package org.nbubigdata.flink
nbu@ecs:~/bigdata/flink/wordcount$ mkdir -p src/org/nbubigdata/flink
# 创建输出文件夹classes 用于保存编译后的class文件及jar包
nbu@ecs:~/bigdata/flink/wordcount$ mkdir classes

nbu@ecs:~/bigdata/flink/wordcount$ cd src/org/nbubigdata/flink
nbu@ecs:~/bigdata/flink/wordcount/src/org/nbubigdata/flink$ vim WordCount.java
```

输入如下内容：
```java
package org.nbubigdata.flink

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.java.DataSet;
import org.apache.flink.api.java.ExecutionEnvironment;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.util.Collector;

// 批处理word count
public class WordCount {
    public static void main(String[] args) throws Exception{
        // 创建执行环境
        ExecutionEnvironment env = ExecutionEnvironment.getExecutionEnvironment();

// 从文件中读取数据
        String inputPath = "/home/nbu/bigdata/flink/data/hello.txt";
        DataSet<String> inputDataSet = env.readTextFile(inputPath);

System.out.println("WordCount-begin");
        // 对数据集进行处理，按空格分词展开，转换成(word, 1)二元组进行统计
        DataSet<Tuple2<String, Integer>> resultSet = inputDataSet.flatMap(new MyFlatMapper())
                .groupBy(0)    // 按照第一个位置的word分组
                .sum(1);    // 将第二个位置上的数据求和
        resultSet.print();
        System.out.println("WordCount-end");
    }

// 自定义类，实现FlatMapFunction接口
    public static class MyFlatMapper implements FlatMapFunction<String, Tuple2<String, Integer>> {
        @Override
        public void flatMap(String value, Collector<Tuple2<String, Integer>> out) throws Exception {
            // 按空格分词
            String[] words = value.split(" ");
            // 遍历所有word，包成二元组输出
            for (String word : words) {
                out.collect(new Tuple2<>(word, 1));
            }
        }
    }
}
```

在`/home/nbu/bigdata/flink/data/`下建立`hello.txt`文件，内容如下：
```
hello world
hello flink
hello nbu
hello nbu
```

**二、使用 javac 命令进行编译**

配置CLASSPATH
```bash
nbu@ecs:~$ vim ~/.bashrc

# 在文件最后加上
export FLINK_HOME=/usr/local/flink
export CLASSPATH=$CLASSPATH:$FLINK_HOME/lib/*

nbu@ecs:~$ source ~/.bashrc
```

Javac编译
```bash
nbu@ecs:~/bigdata/flink/wordcount/src/org/nbubigdata/flink$ cd ~/bigdata/flink/wordcount
nbu@ecs:~/bigdata/flink/wordcount$ javac -d ./classes ./src/org/nbubigdata/flink/WordCount.java
```
编译完成后可以看到`~/bigdata/flink/wordcount/classes/org/nbubigdata/flink/` 下多了一个`WordCount.class`文件

**三、提交运行**
使用 java 命令运行编译后代码。

```bash
# 开启Flink集群
nbu@ecs:~/helloworld$/usr/local/flink/bin/start-cluster.sh
Starting cluster.
Starting standalonesession daemon on host ecs.
Starting taskexecutor daemon on host ecs.

# 进入classes文件夹下
nbu@ecs:~/helloworld$ cd classes/
# 运行java对class文件进行测试
nbu@ecs:~/bigdata/flink/wordcount/classes$ java org.nbubigdata.flink.WordCount
```

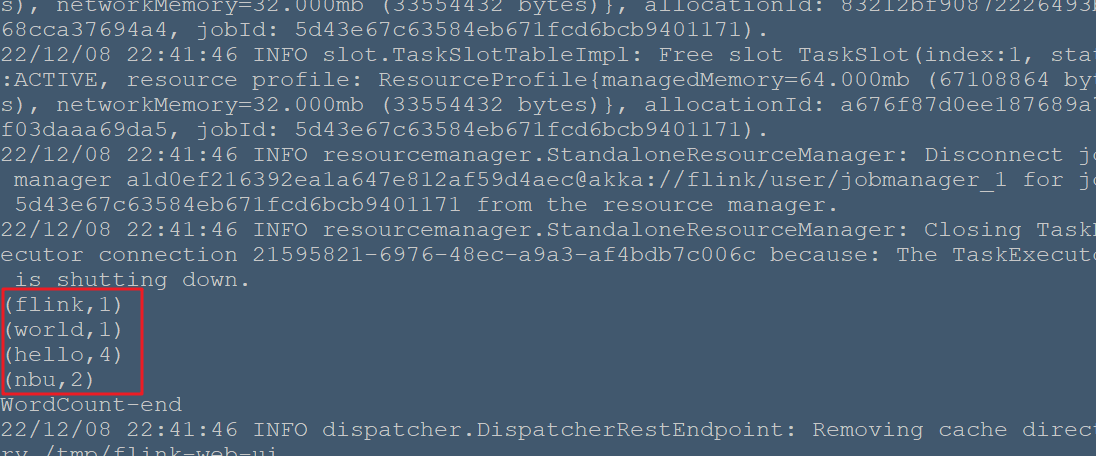

可以看到对`/home/nbu/bigdata/flink/data/hello.txt`中的内容进行了WordCount

![](https://hexo-img.obs.cn-east-3.myhuaweicloud.com/img/202212082243162.png)

**四、打成可运行的 jar 包**

```bash
nbu@ecs:~/bigdata/flink/wordcount/classes$ vim MANIFEST.mf
```

经过上述步骤以后，可以先在classes目录下编写一个MANIFEST.mf
文件内容如下，这里要注意每个冒号后面的英文空格，每行结束都要有个回车。
```
Manifest-Version: 1.0
Class-Path:
Created-By: 1.8.0_312 (Sun Microsystems Inc.)
Main-Class: org.nbubigdata.flink.WordCount

```

输入以下命令，可在classes文件夹下生成HelloWorld.jar包
```bash
nbu@ecs:~/bigdata/flink/wordcount/classes$ jar -cvfm WordCount.jar MANIFEST.mf org
added manifest
adding: org/(in = 0) (out= 0)(stored 0%)
adding: org/nbubigdata/(in = 0) (out= 0)(stored 0%)
adding: org/nbubigdata/flink/(in = 0) (out= 0)(stored 0%)
adding: org/nbubigdata/flink/WordCount.class(in = 1444) (out= 709)(deflated 50%)
adding: org/nbubigdata/flink/WordCount$MyFlatMapper.class(in = 1481) (out= 676)(deflated 54%)

nbu@ecs:~/bigdata/flink/wordcount/classes$ ll
total 20
drwxrwxr-x 3 nbu nbu 4096 Dec  8 22:49 ./
drwxrwxr-x 4 nbu nbu 4096 Dec  8 22:33 ../
-rw-rw-r-- 1 nbu nbu  125 Dec  8 22:49 MANIFEST.mf
drwxrwxr-x 3 nbu nbu 4096 Dec  8 22:40 org/
-rw-rw-r-- 1 nbu nbu 2442 Dec  8 22:49 WordCount.jar
```

> `jar -cfm`中`f`和`m`的次序要与`WordCount.jar`和`MANIFEST.mf`相对应

**五、命令行提交jar包**

```bash
nbu@ecs:~/bigdata/flink/wordcount/classes$ /usr/local/flink/bin/flink run WordCount.jar
```

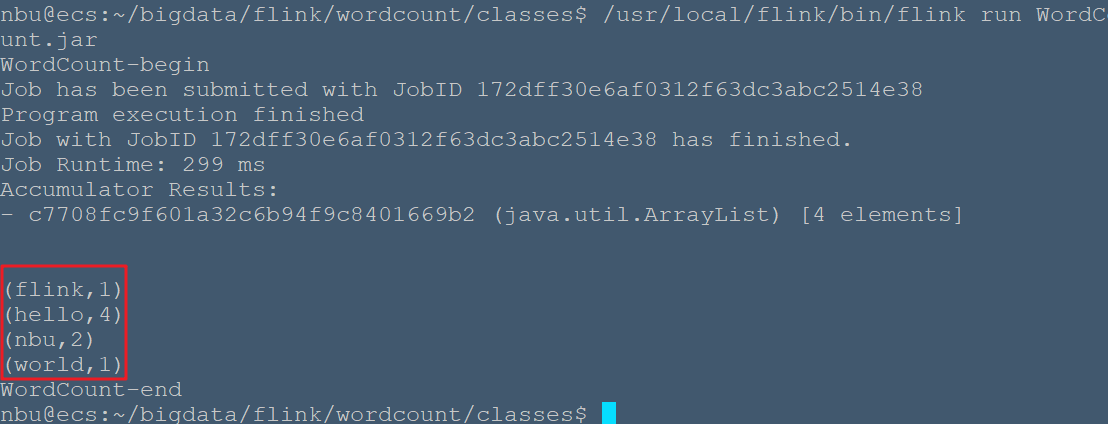

得到如下结果
![](https://hexo-img.obs.cn-east-3.myhuaweicloud.com/img/202212082252379.png)

注意在提交前要开启Flink集群
```bash
nbu@ecs:~/helloworld$/usr/local/flink/bin/start-cluster.sh
Starting cluster.
Starting standalonesession daemon on host ecs.
Starting taskexecutor daemon on host ecs.
```

**六、WUI提交jar包**
在浏览器输入网址 127.0.0.1:8081

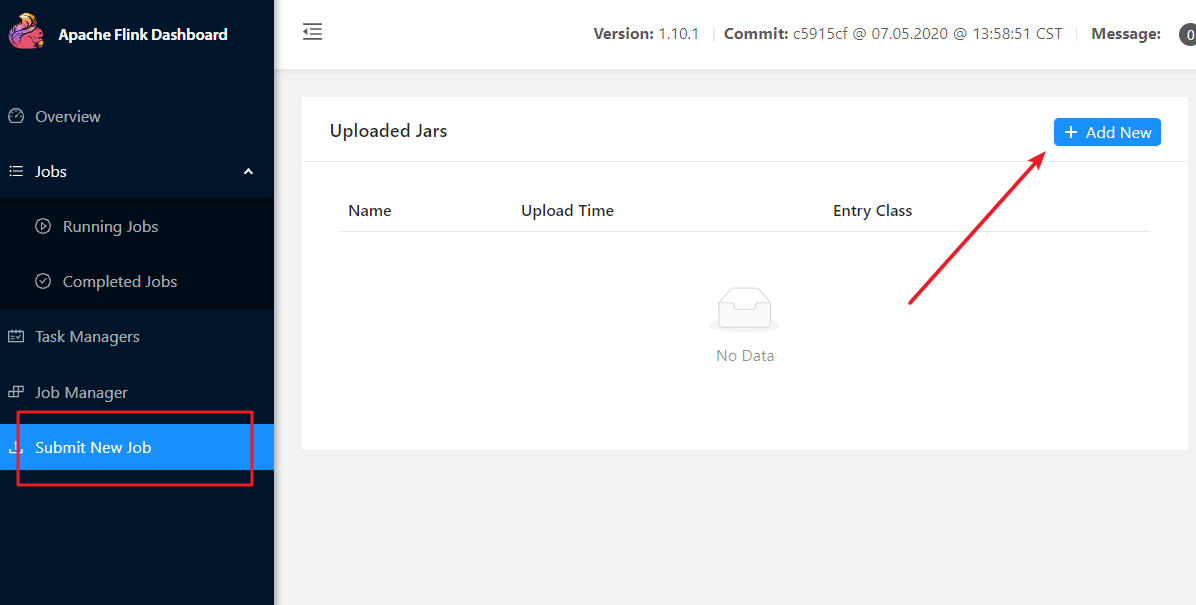

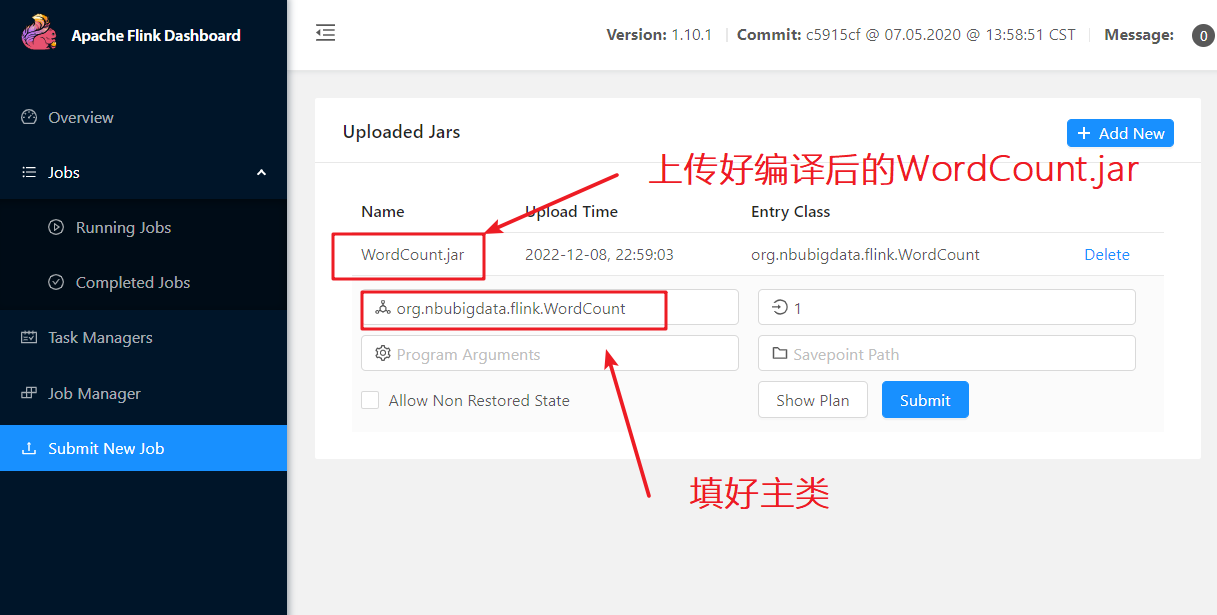

点击`Submit New Job`、`Add New`
![](https://hexo-img.obs.cn-east-3.myhuaweicloud.com/img/202212082257488.png)
![](https://hexo-img.obs.cn-east-3.myhuaweicloud.com/img/202212082259044.png)
![](https://hexo-img.obs.cn-east-3.myhuaweicloud.com/img/202212082259434.png)
![](https://hexo-img.obs.cn-east-3.myhuaweicloud.com/img/202212082300406.png)
